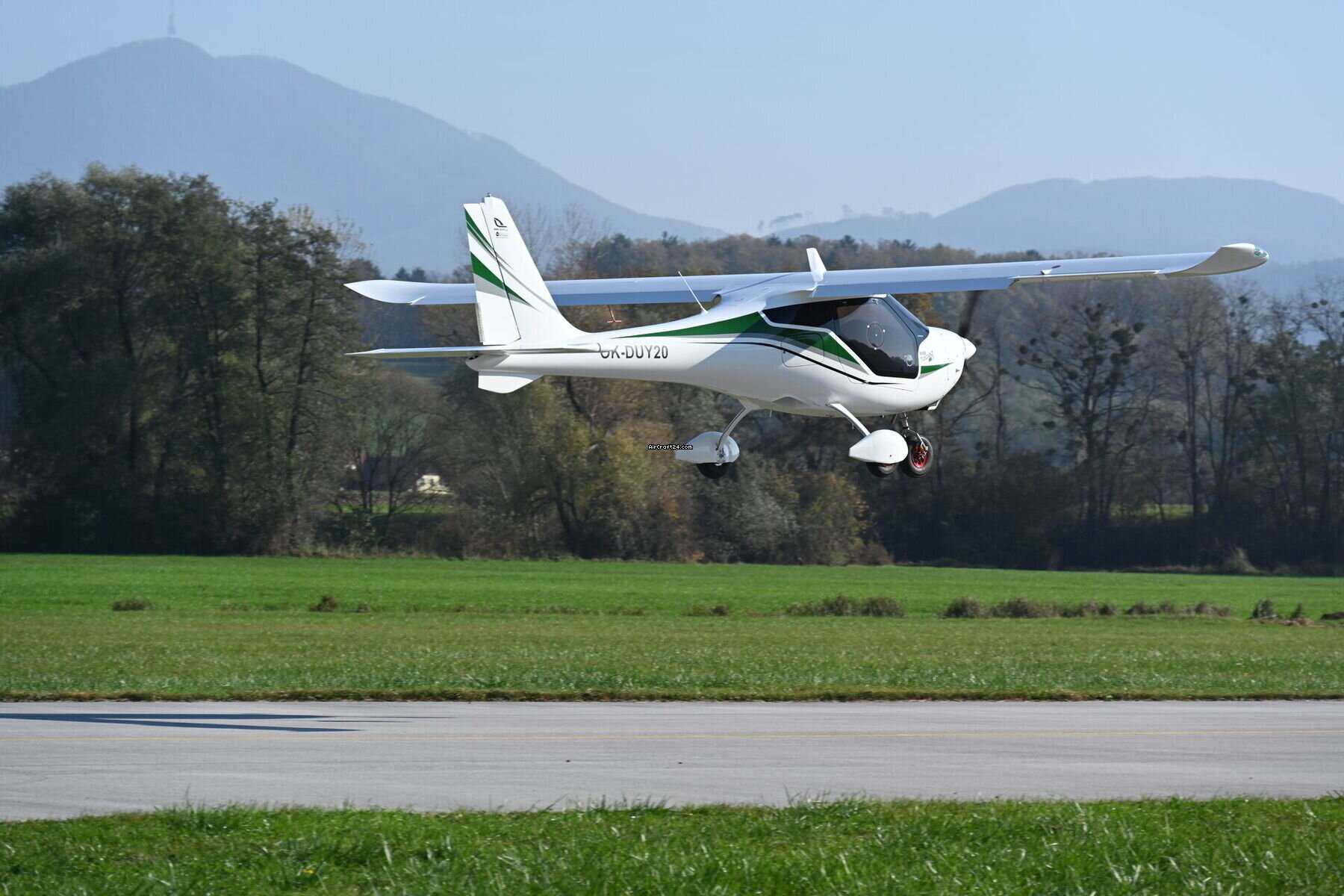

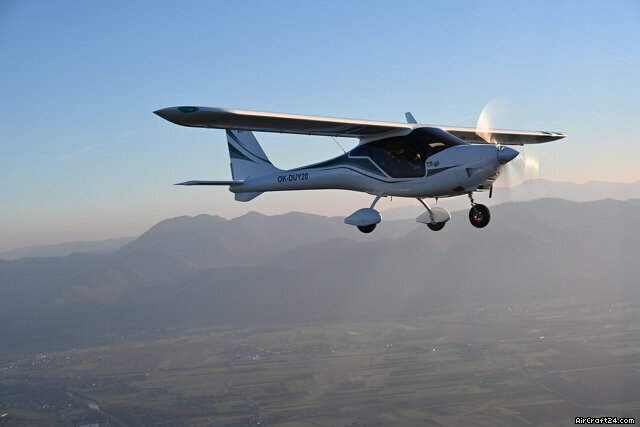

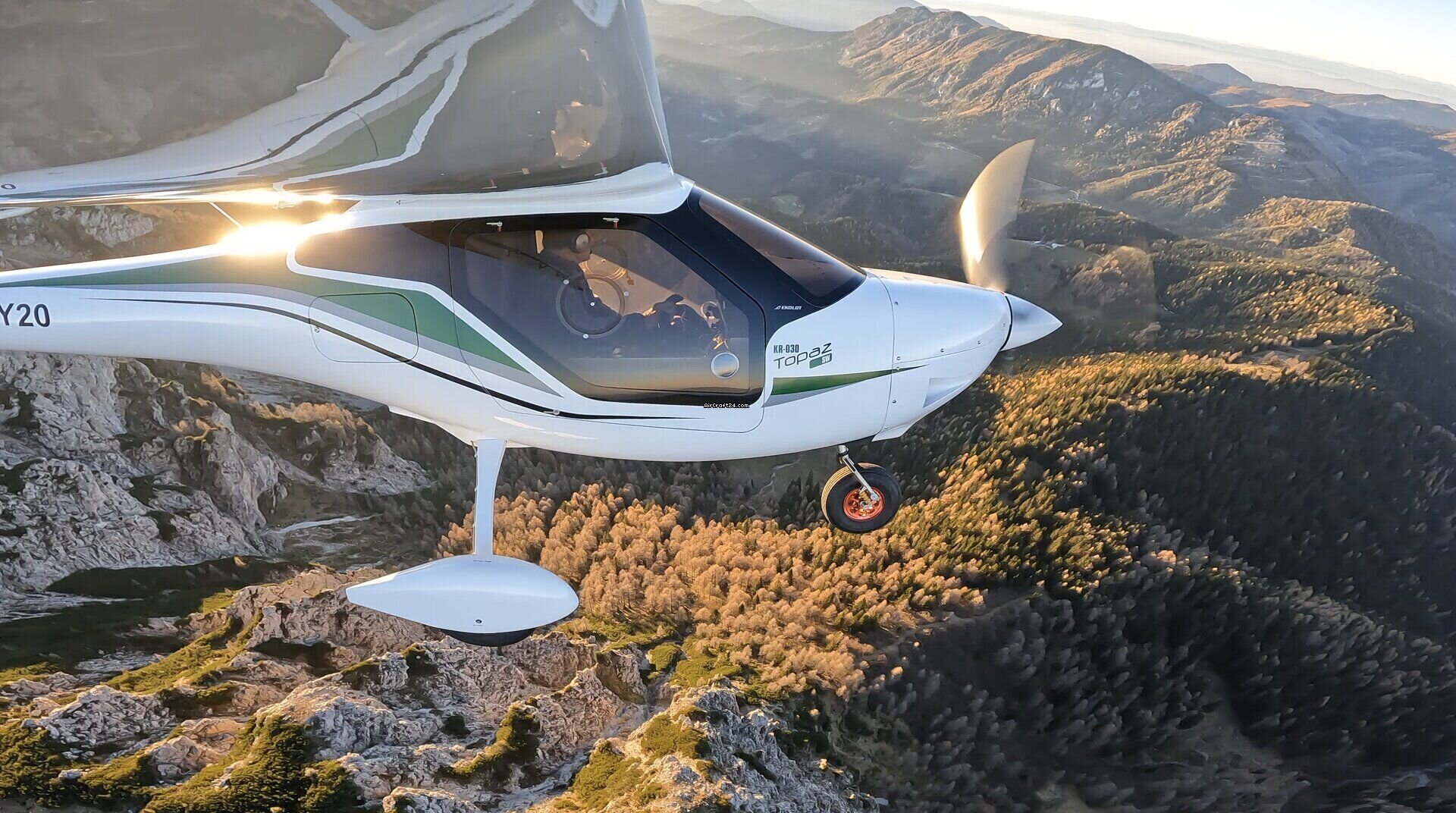

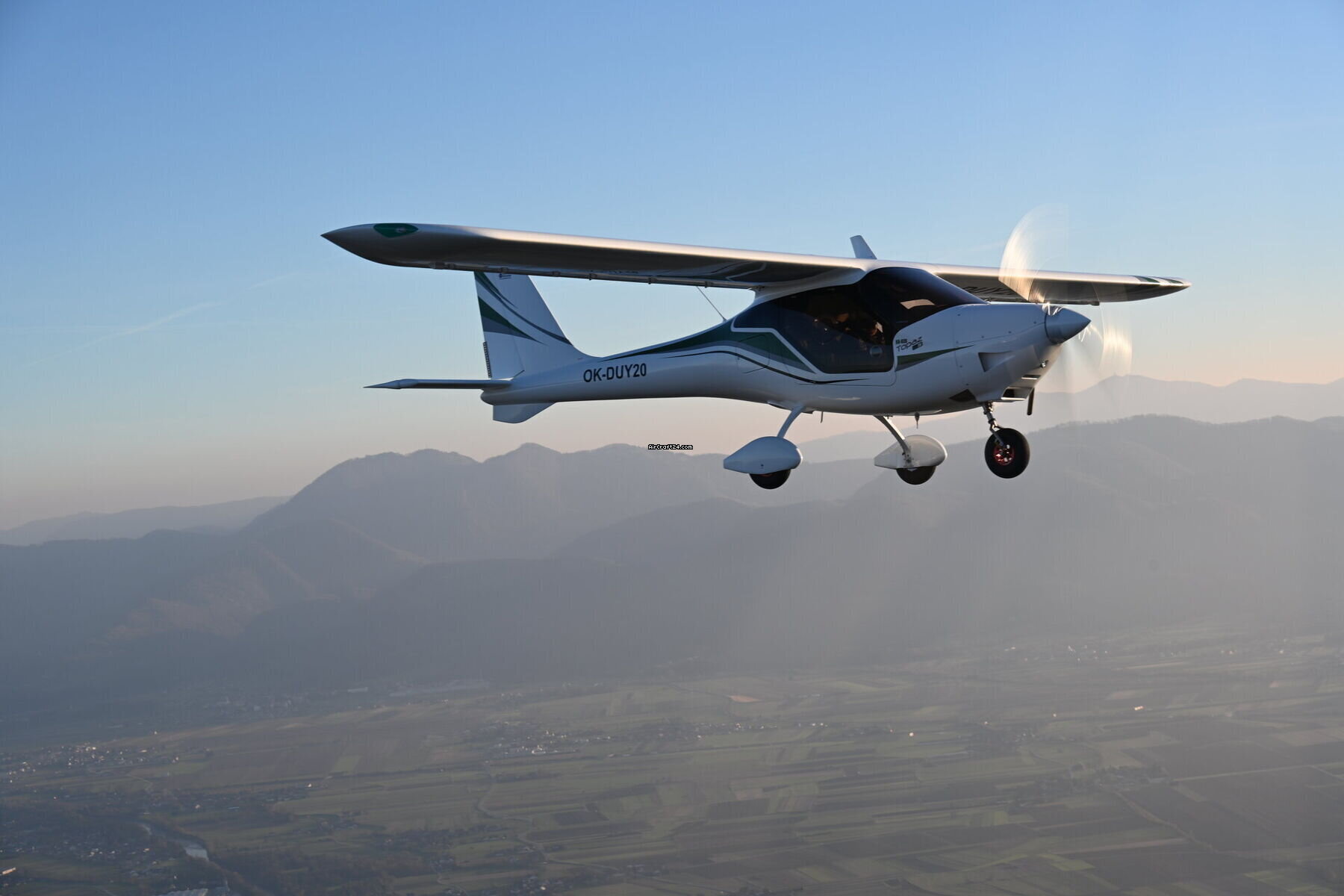

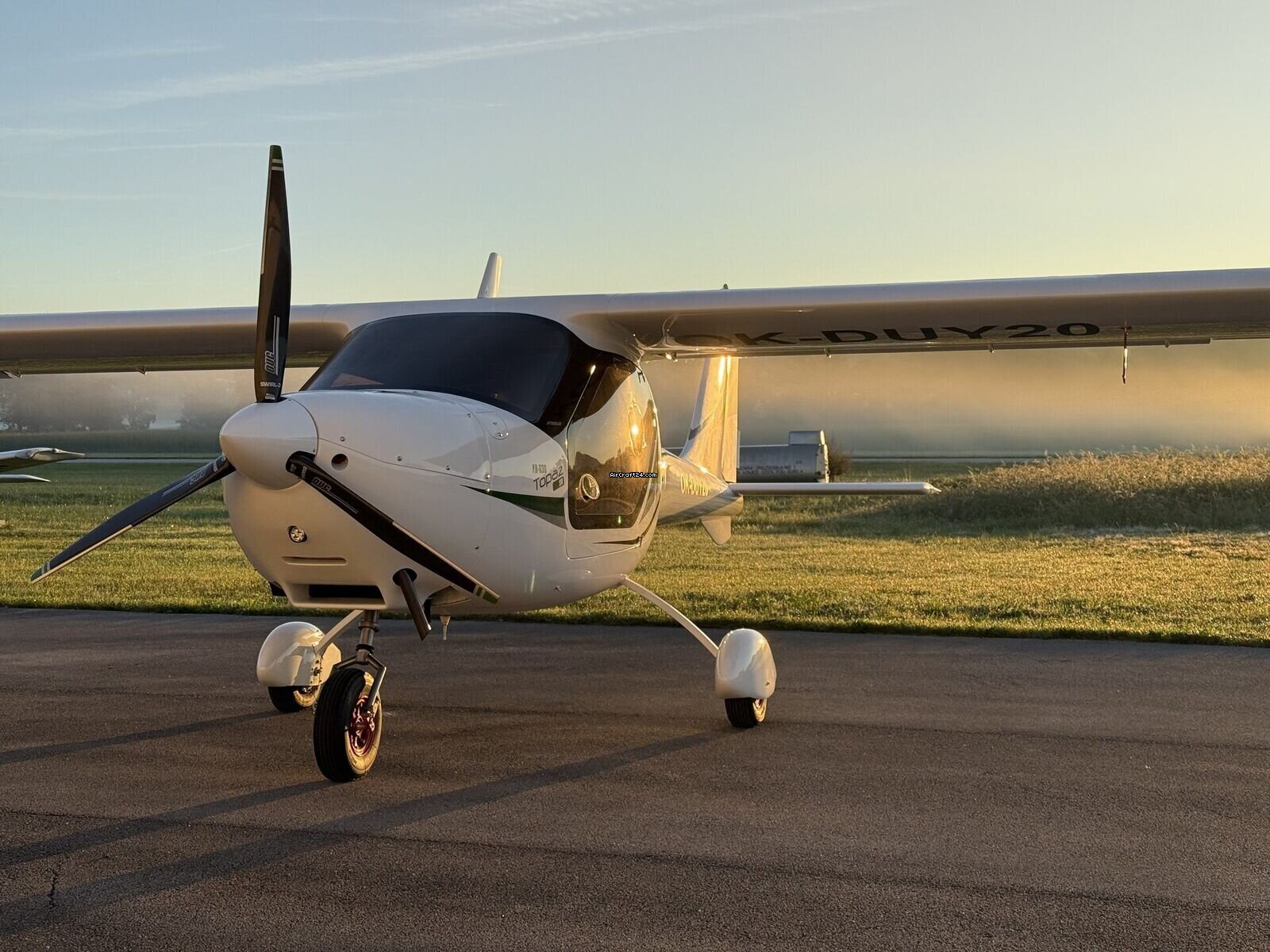

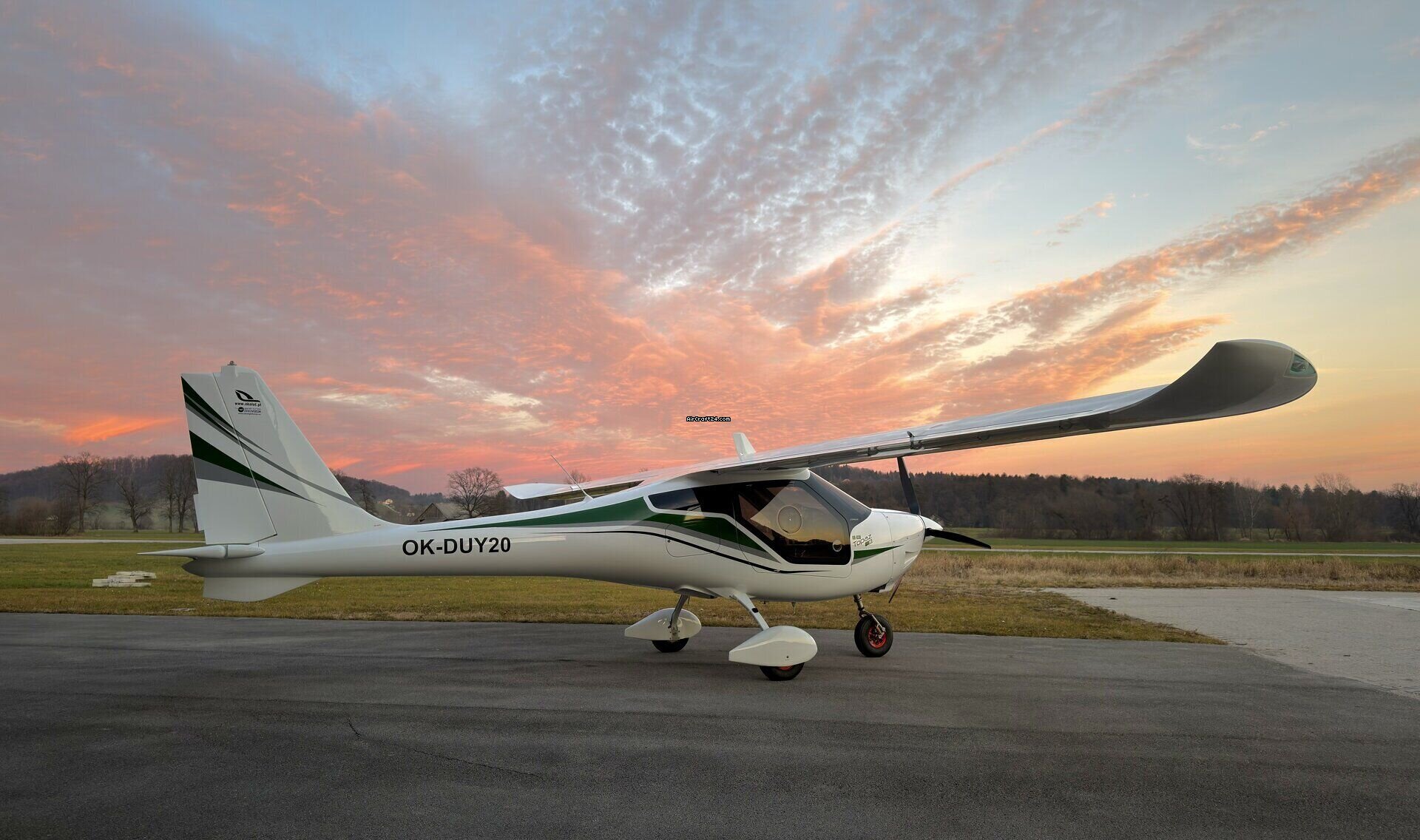

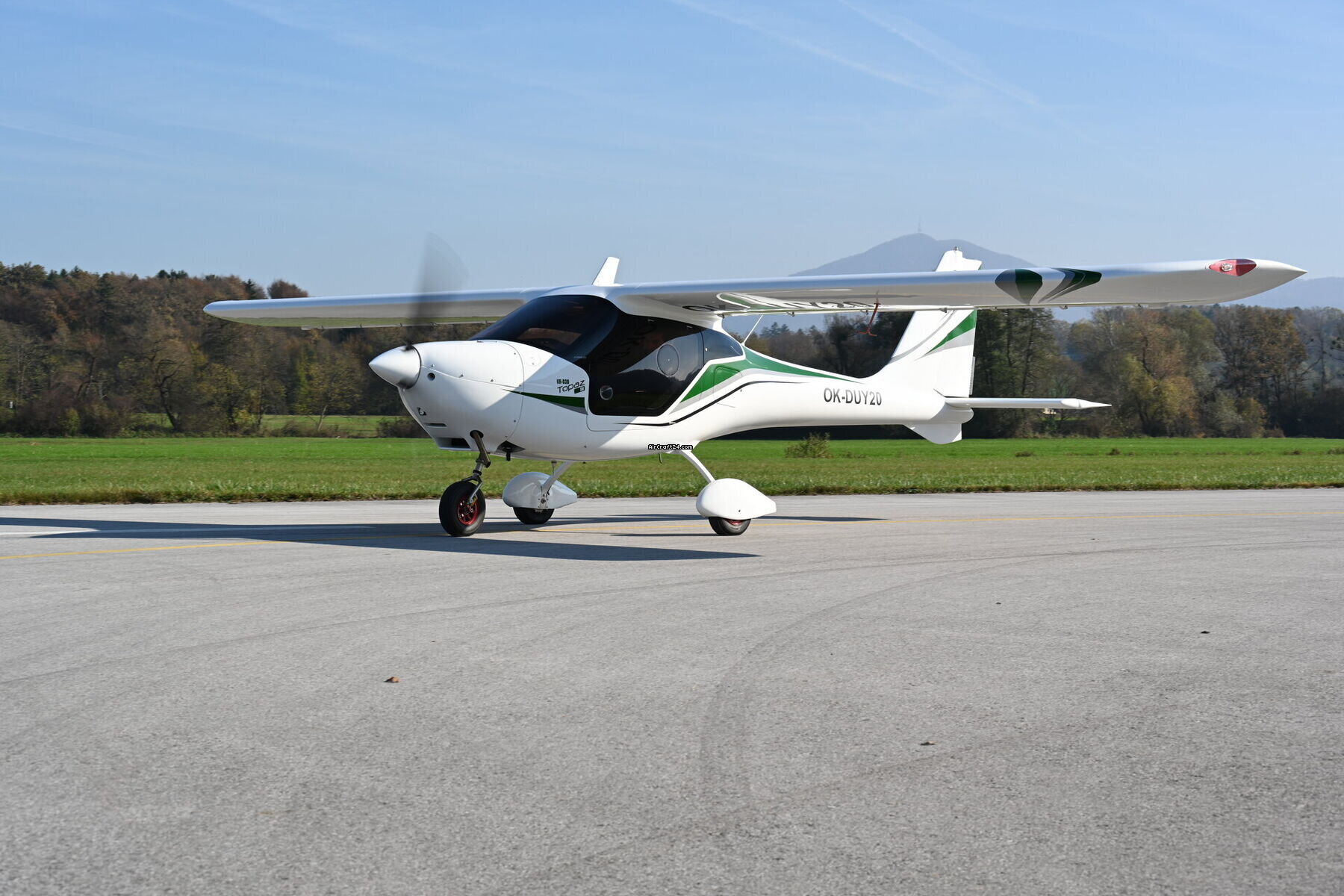

Ekolot Topaz KR-30 - 600

€ 137.000

Übersicht

Übersicht
Typ:	Single-Prop
Spezieller Typ:	Ultra-Leicht Aerial work
Hersteller:	Ekolot
Modell:	Topaz KR-30 - 600
Baujahr:	2024
RegistrierungsNr.:	OK-DUY20
Serien-Nr.:	30-15-01
Eigenschaften:	Stets hangariert
Standort:	Slovenien, Slovenske Konjice, LJSK
Gesamtzeit (TTAF):	160 h
Preis:	€ 137.000
EU-versteuert:	nein
Alle Details

Anbieter
Matevz Lenarcic Tel.: +38641353392
Kontakt zum Anbieter




Zeige alle 18 Bilder

Details

Übersicht
Typ:	Single-Prop
Spezieller Typ:	Ultra-Leicht Aerial work
Hersteller:	Ekolot
Modell:	Topaz KR-30 - 600
Baujahr:	2024
RegistrierungsNr.:	OK-DUY20
Serien-Nr.:	30-15-01
Eigenschaften:	Stets hangariert
Standort:	Slovenien, Slovenske Konjice, LJSK
Gesamtzeit (TTAF):	160 h
Preis:	€ 137.000
EU-versteuert:	nein
Landungen:	210

Motor(en)
Anzahl Motoren:	1
Hersteller/Modell:	Rotax 912 ULS 2-01
Seriennummer:	10004749
Leistung:	100 PS
Gesamtzeit:	170 h
TBO (Stunden):	2000 h
Prop Hersteller/Modell:	DUC SWIRL3
Prop Gesamtzeit:	170 h

Beschreibung/Details Motoren
Electric carburetor heating, oil thermostat

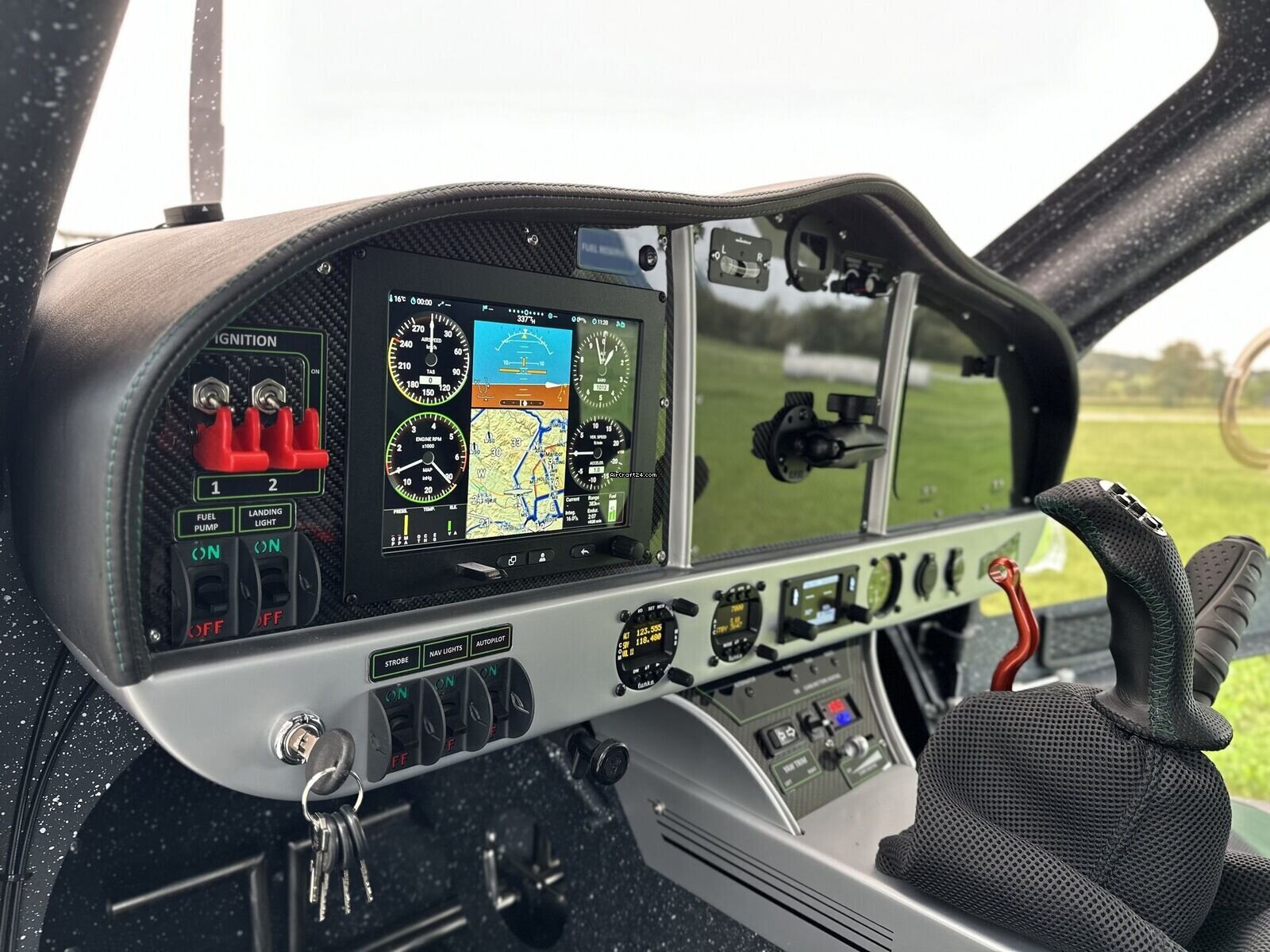

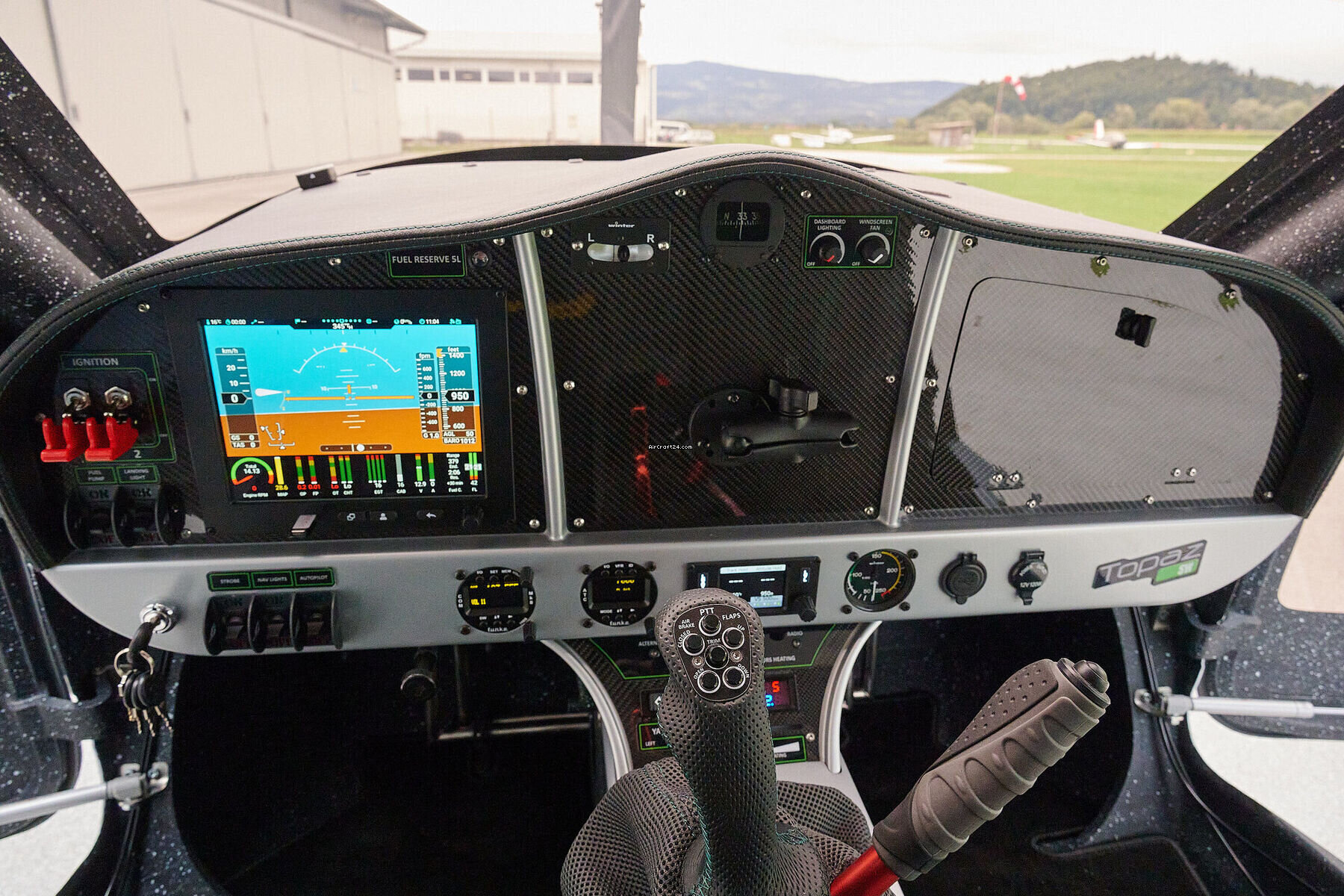

Avionik

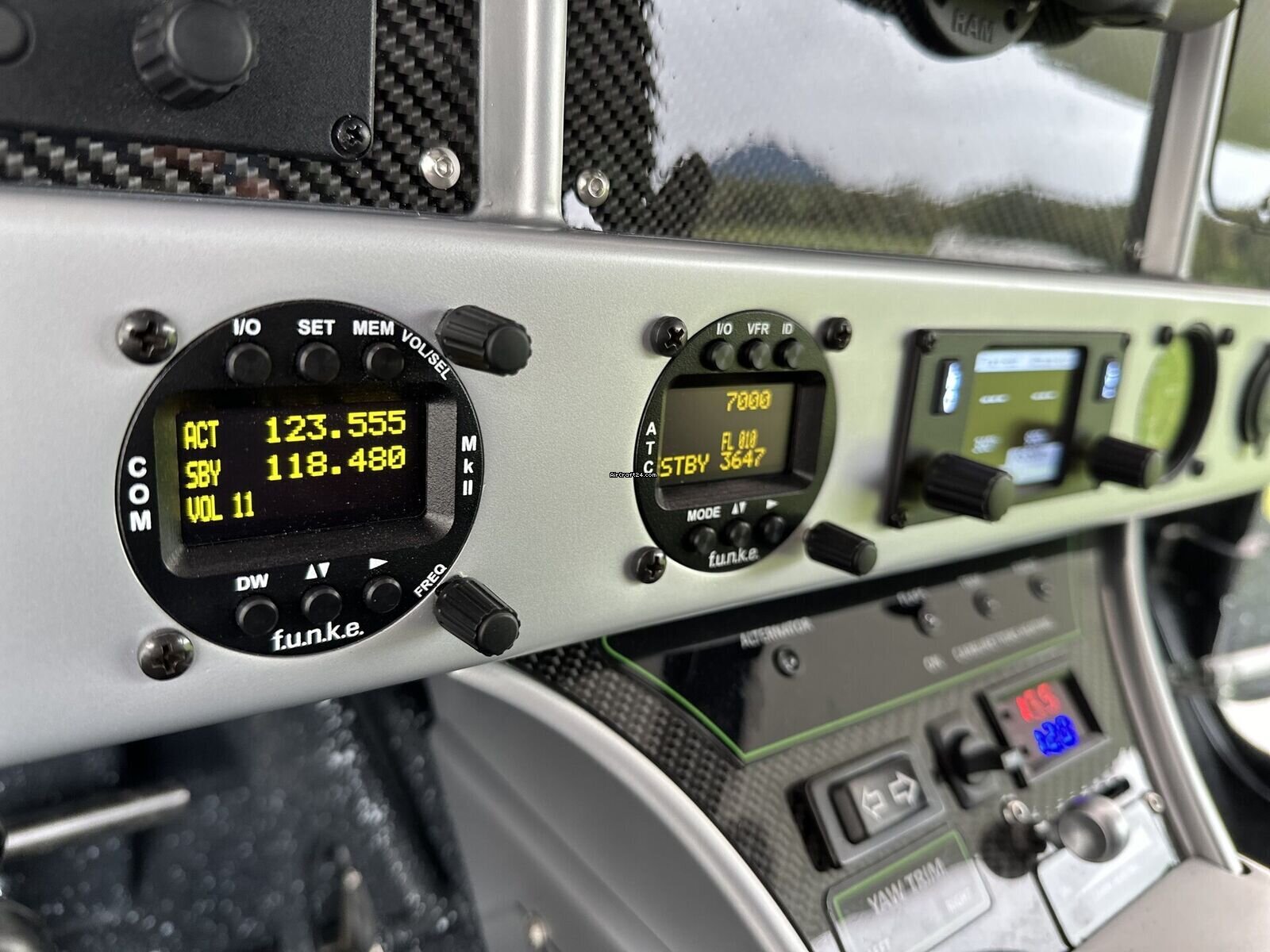

Transponder (Funkwerk TRT 800 Mode S, Mode A/C, ADS-B out).
VHF Radio (Funkwerk ATR 833=II Oled Dual Watch 8.33 kHz Supported directly from the EFIS Nesis III menu.- frequency entry- selection of frequencies saved in navigation).

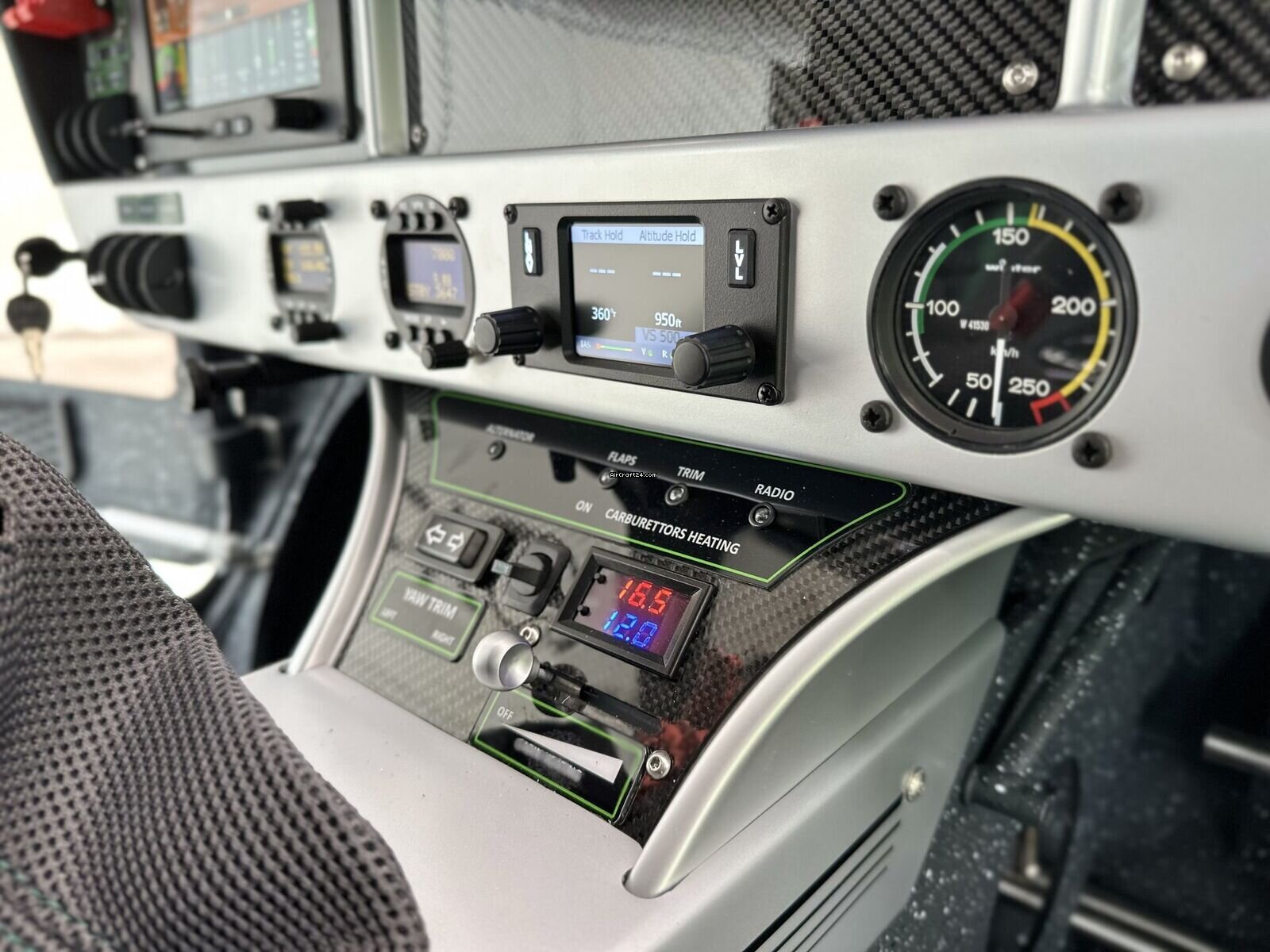

Autopilot Kanardia (2-axis autopilot system, elevator and ailerons, the aircraft must be equipped with rudder trim). Control modes: Level flight - using ailerons and elevator keep the plane in horizontal flight Heading - using ailerons it maintains set course relativ to the ground Vertical speed - using elevator it maintains the set vertical speed (ascent or descent) Altitude - using the rudder it reaches and then maintains the set altitude Flight Director - using ailerons, it flies to the destination set in navigation).

Headphones lemo and standard connectors

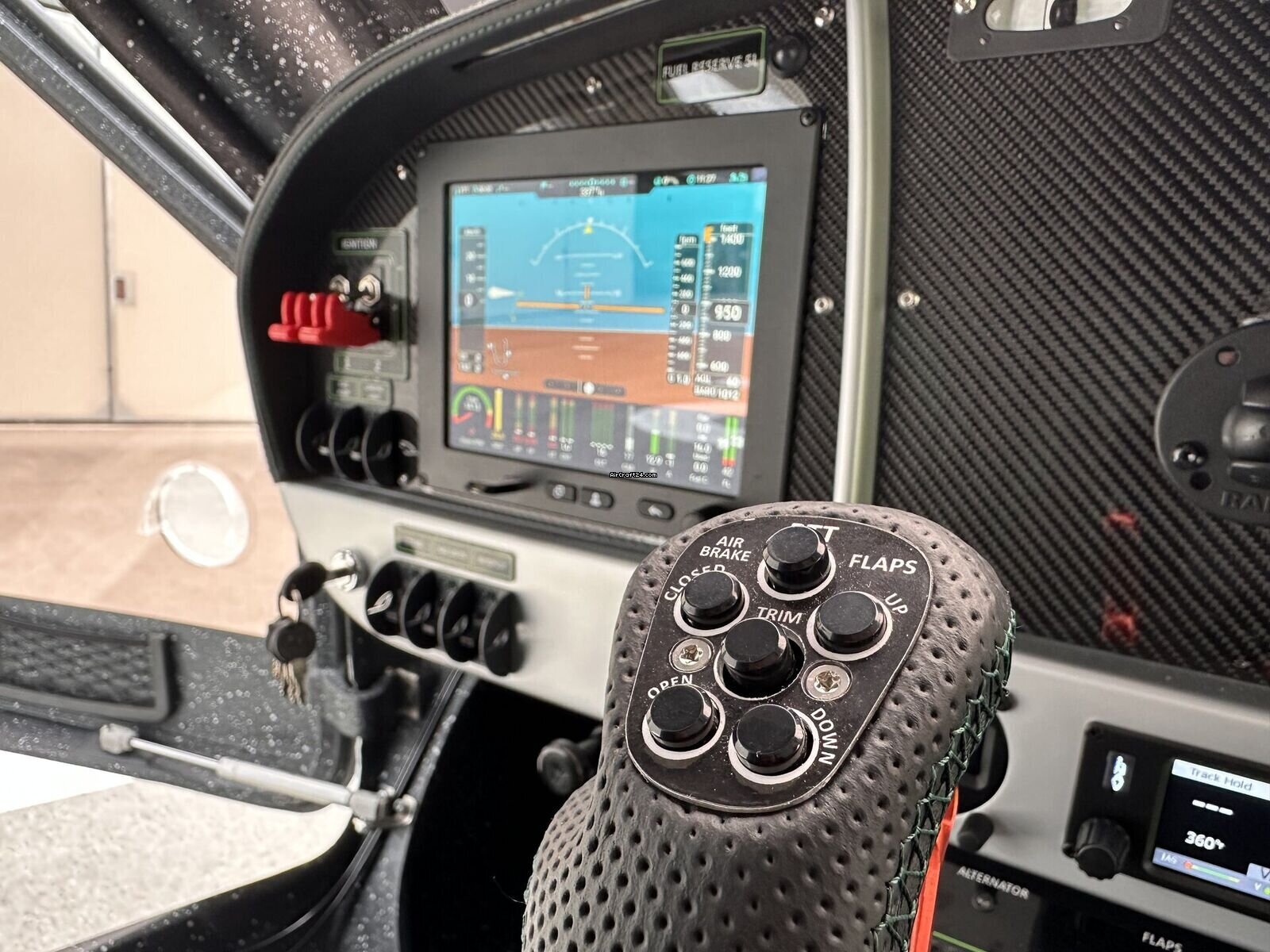

Stick, centrally positioned, allows you to control flaps - trim - PTT- Aux, air brakes, autopilot.

Ausstattung

Cockpit width 1.2 m.

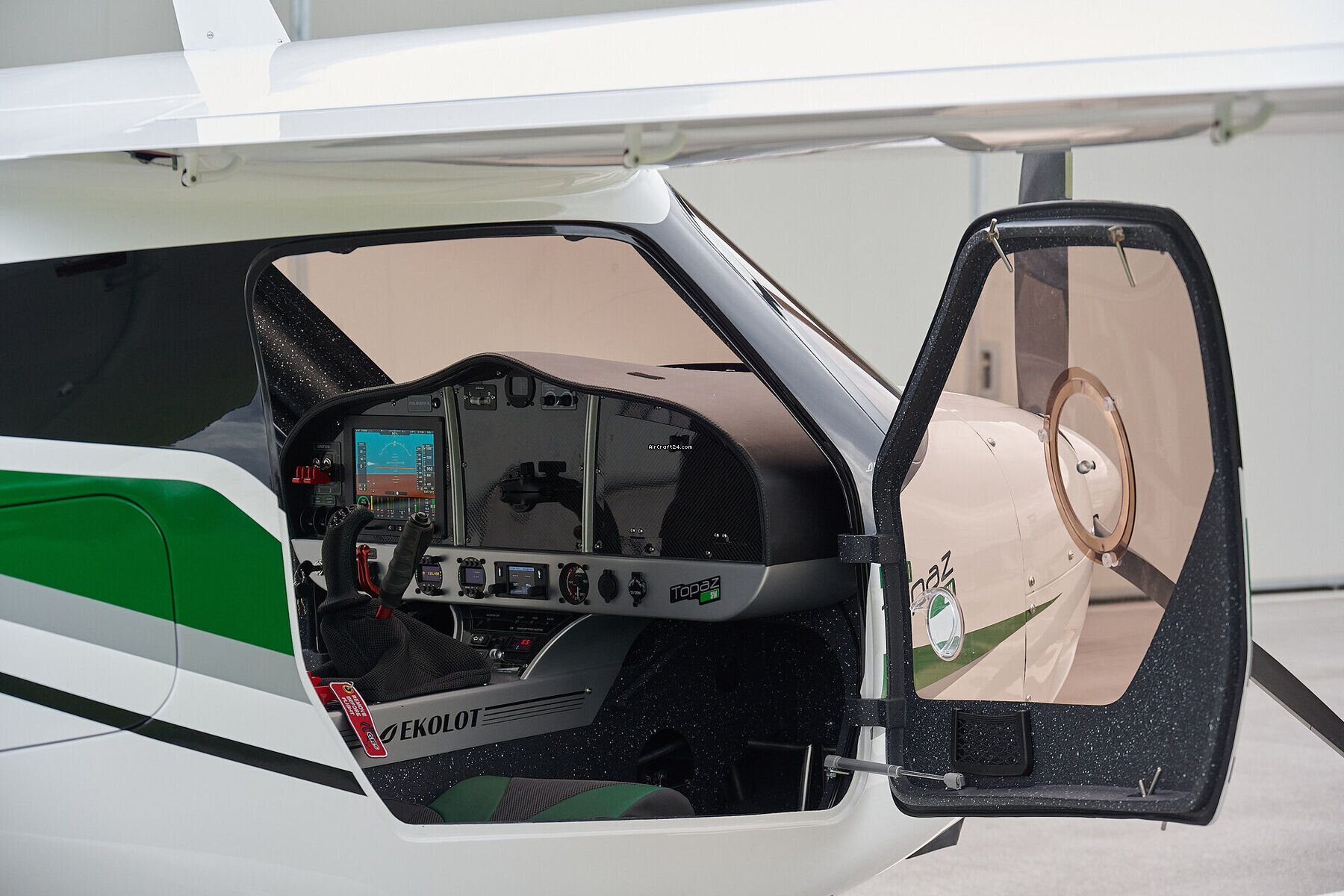

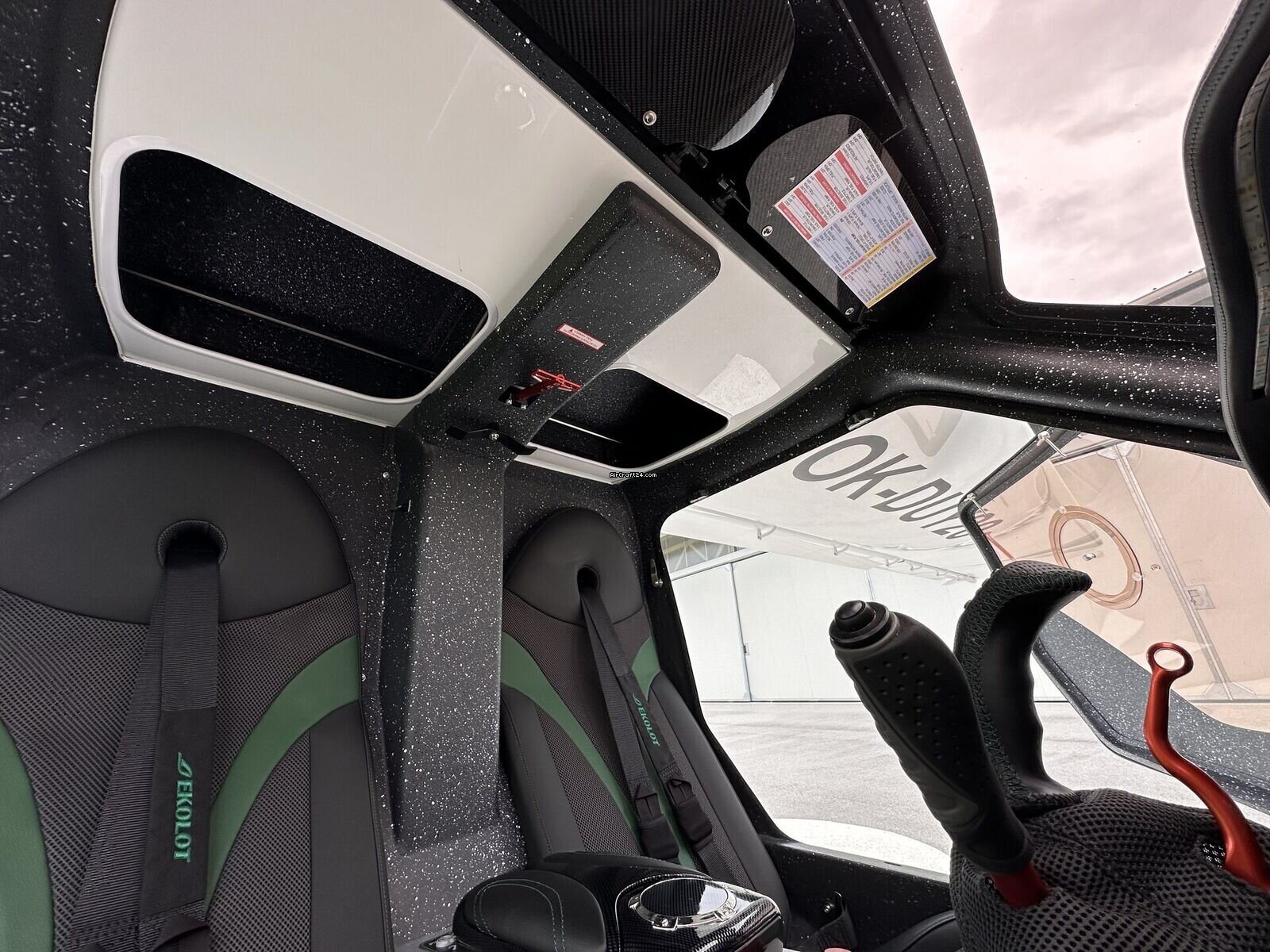

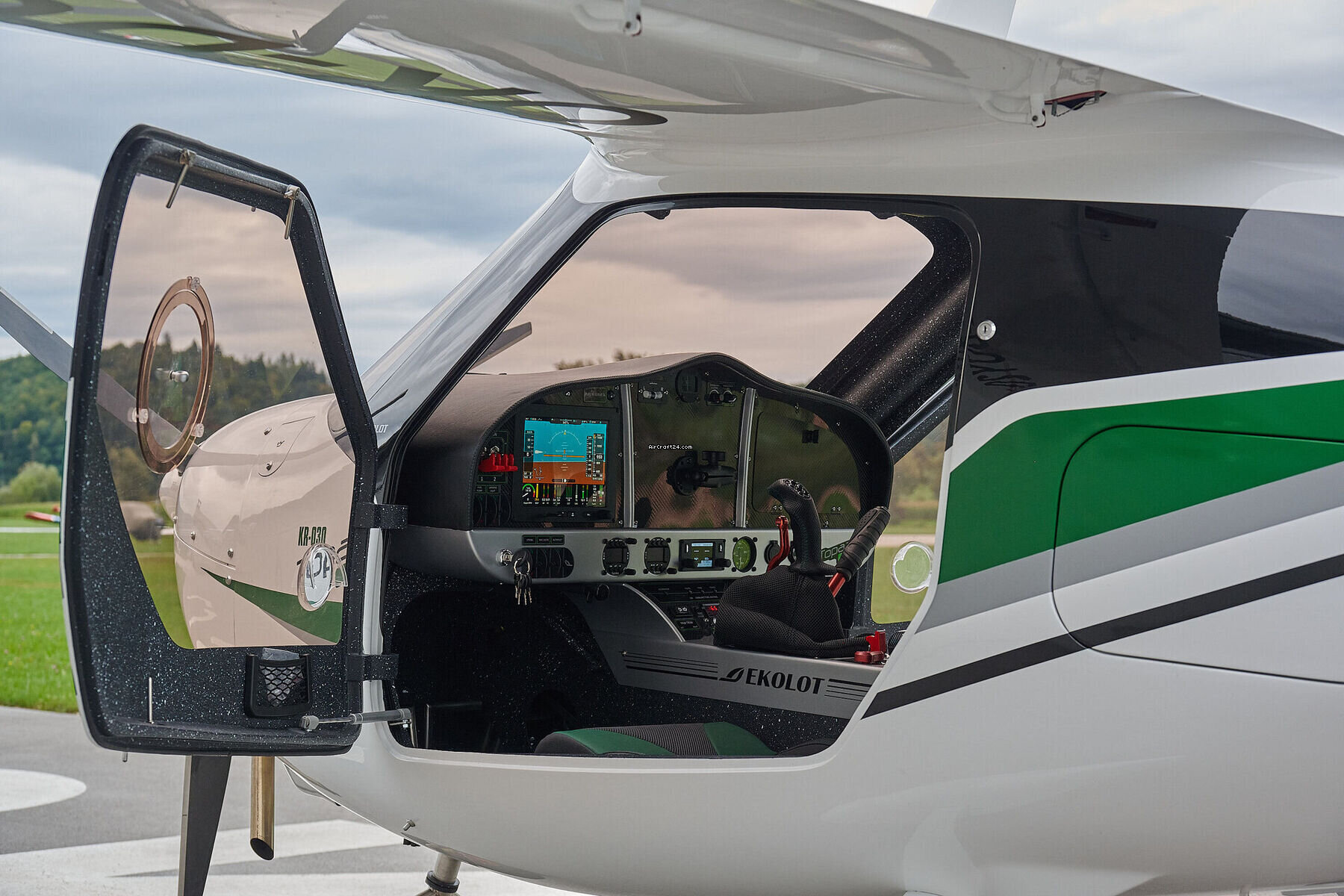

Seats with a shell structure made of composites. Cockpit cover - a wind-up glass made of ultraviolet-resistant acrylic glass (PMMA polymethyl methacrylate), side door also made of acrylic glass (PMMA), 3 mm thick, on a composite frame.

Vertical stabilizer integral with the fuselage. Tricycle landing gear with a front wheel.
Slotted flaps driven by the fuselage - electric, control on a joystick.
The aileron is made of carbon laminate due to the necessary high torsional stiffness, with the smallest possible mass (anti-flutter requirements) with a mass balance fixed at its end.
Wings air brakes controlled on stick.
Elevator and aileron trimmer - spring-loaded, electrically adjustable, control on the joystick
92 l fuel tanks mounted in the wings, 5 l fuel tank under the instrument panel
- Parachute rescue system(Galaxy to 600 kg)
- Brake system Beringer (Full Beringer brake kit: - main wheels with tubeless tires, Beringer brake calipers, Beringer discs, steel brake hoses - Beringer front tire with tubeless tire Beringer brake pump with parking brake pin.)

Exterieur

Engine cover with Cam-Lock fasteners (Engine cowling made from carbon fiber with Cam-lock fastners. Inspection tap allows control of the oil level without removing the engine cowling.).
Wheel fairings (Fairings of the main wheels and front wheel. painted white).
Marker lights and strobe (Standard marker lights: red and green at the ends of the wings. White stroboscope on the vertical fin.)

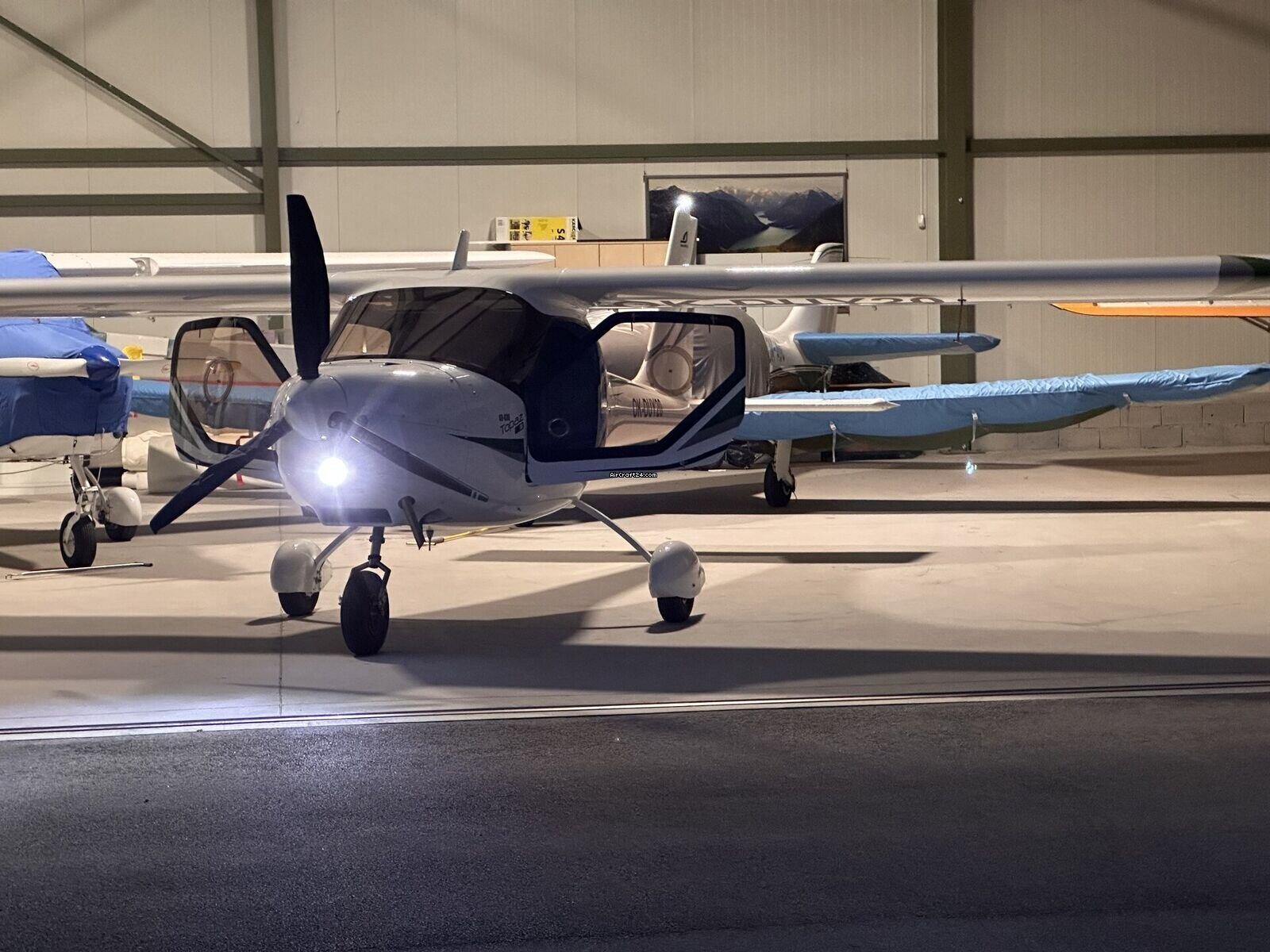

Landing light.
Covers for the entire aircraft.

Interieur

Tinted windows (Side and front windows slightly dimmed with PMMA 3mm).
Ventilation - cab heating(Two adjustable air inlets on side windows, Blowing air on the windscreen with variable speed, Adjustable heating of the cab.)

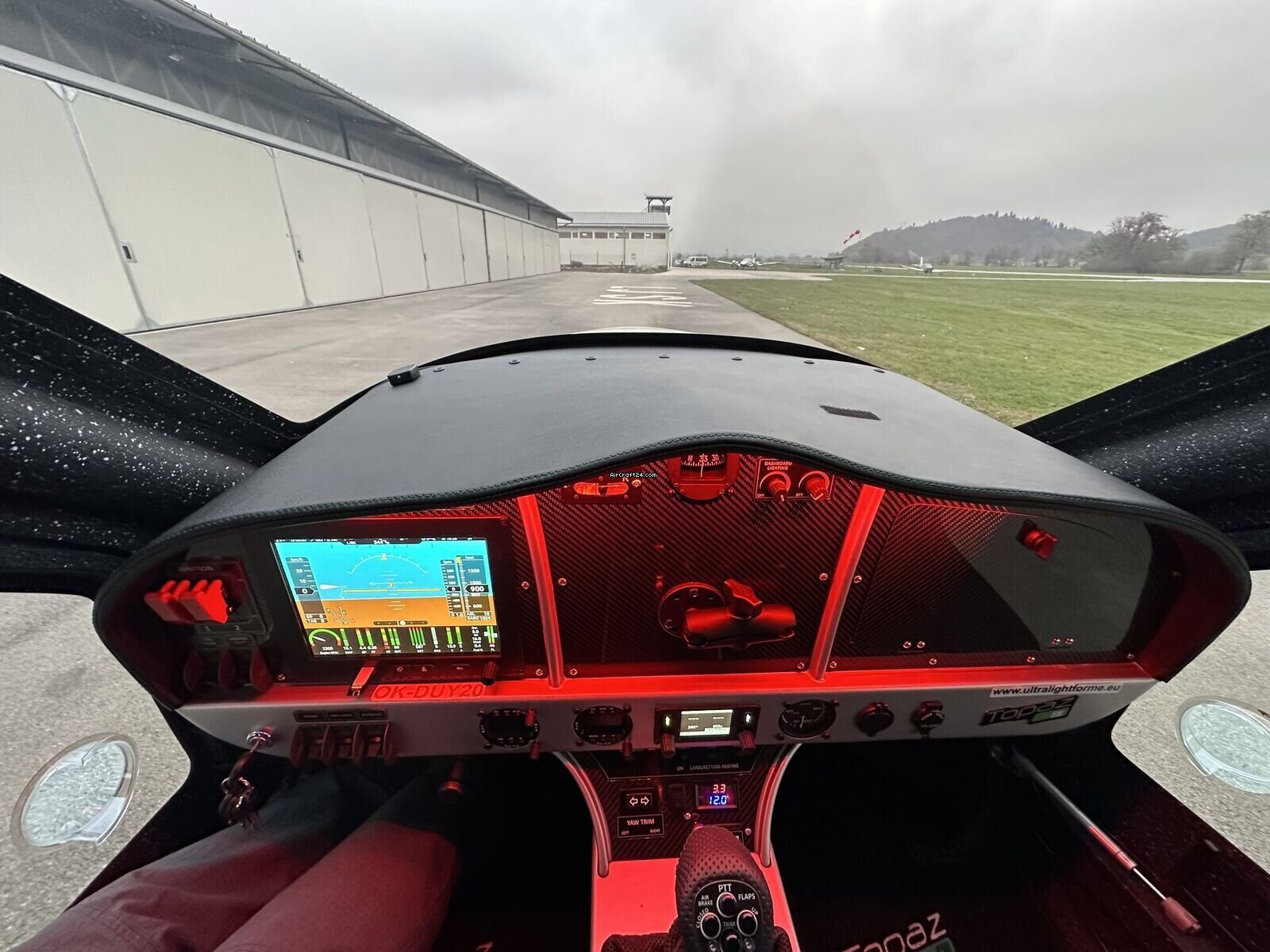

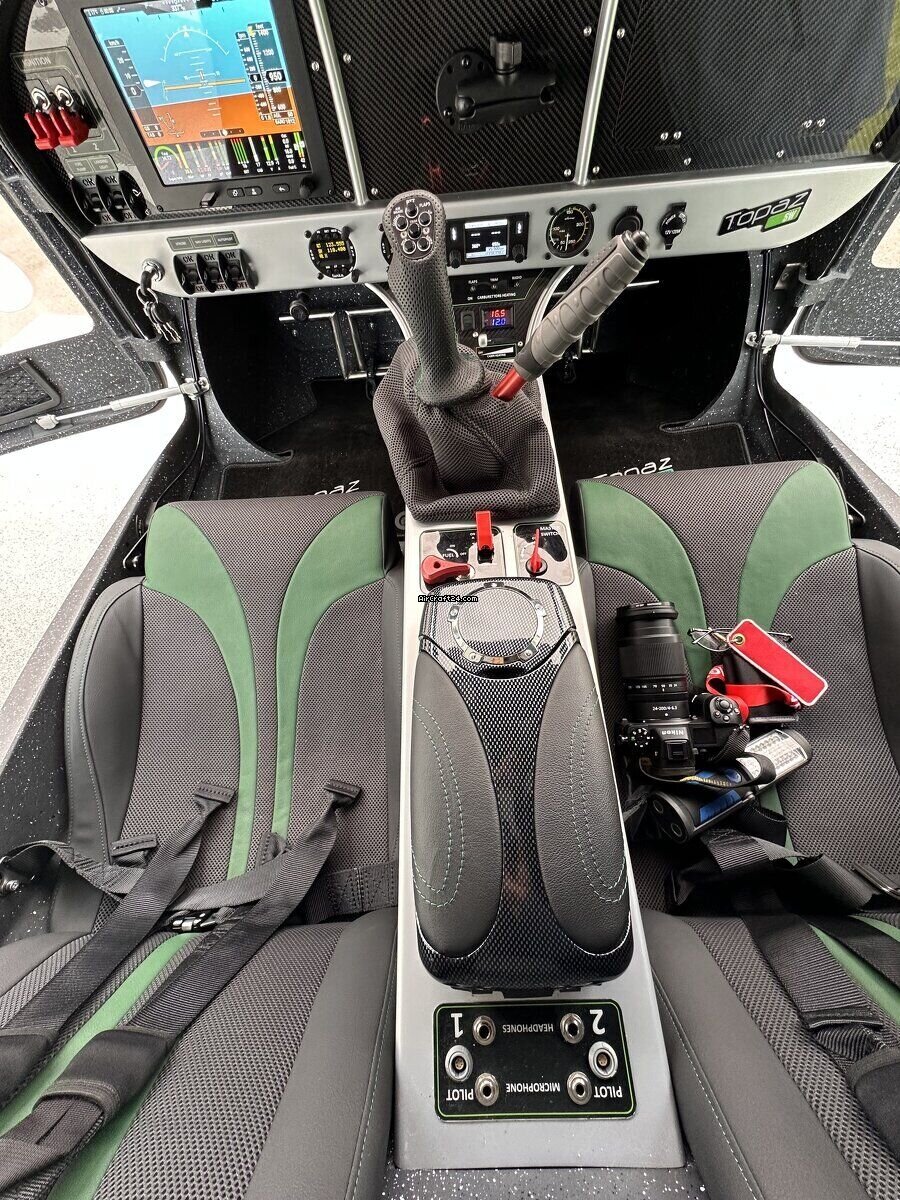

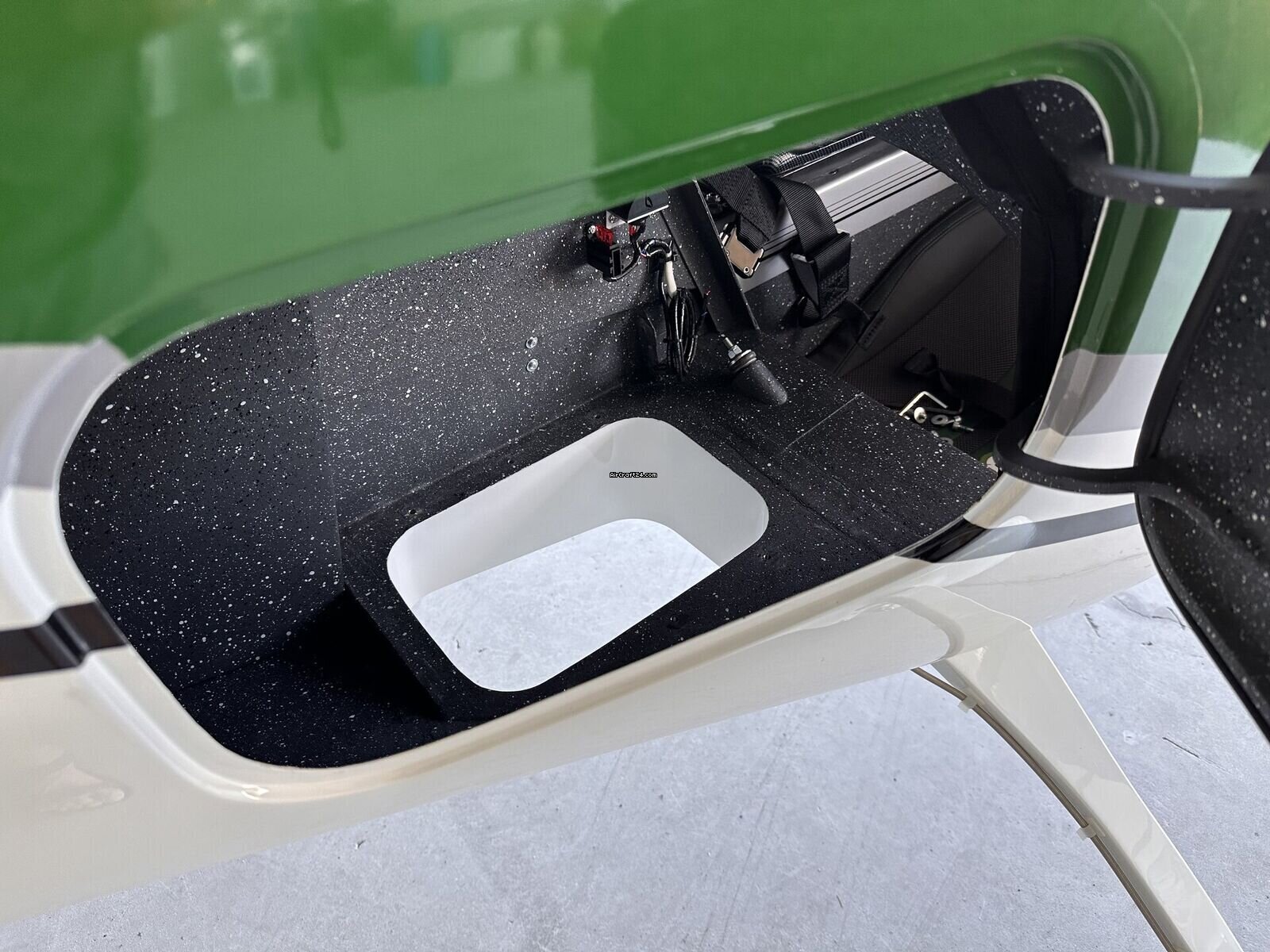

Exclusive package(Mesh containers for trinkets 2 pcs Mats on the door Armrest-container for trinkets glove compartment Instrument panel - carbon panels, Sun visors for the pilot and passenger USB socket Hanger for headphones).
