Feilhauer Aircraft Sales - Unsere Angebote
Bell 212 |
Preis auf Anfrage |
Übersicht
| Übersicht | | Typ: | Helikopter (Turbine) | | Hersteller: | Bell | | Modell: | 212 | | Baujahr: | 1979 | | RegistrierungsNr.: | A7-HBO | | Serien-Nr.: | 30911 | | Standort: | Qatar, Doha | | Gesamtzeit (TTAF): | 20682 h | | Preis: | Preis auf Anfrage | | Alle Details |
| Anbieter |
Feilhauer Aircraft Sales
P.O. Box 87
CH-1217 Meyrin 1
Schweiz
Tel.: +41 22 782 98 00
Fax: +41 22 782 98 11 |
| Kontakt zum Anbieter |
|
|
|
Details
| Übersicht | | Typ: | Helikopter (Turbine) | | Hersteller: | Bell | | Modell: | 212 | | Baujahr: | 1979 | | RegistrierungsNr.: | A7-HBO | | Serien-Nr.: | 30911 | | Standort: | Qatar, Doha | | Gesamtzeit (TTAF): | 20682 h | | Preis: | Preis auf Anfrage |
| Motor(en) | | Anzahl Motoren: | 2 | | Hersteller/Modell: | Pratt & Whitney PT6T-3B |
| Beschreibung/Details Motoren | Engine N° 1 : Removed
Engine N° 2 : TSO : 4.801,60 Hours |
| Avionik | - Dual Panel Cockpit Instruments
- Two King KTR-905 VHF Radios
- Two King KDF-805 ADF
- King KNR-630 VOR/ILS
- King KDM-705 DME
- King MKR-675 Marker
- King KXP-755 Transponder with Mode C
- Sperry AA300 & AVAD Radio Altimeter
- RS-811A Weather Radar
- Garmin 165 Area Navigational Aid GPS
- Cockpit Voice Recorder
- NAT 150/450 FM Comm
- Flight Crew / Passenger Intercom System
- ELT 406 |
| Ausstattung | - Dual Controls
- Rotor Brake
- Undersling Load Hook and Role Equipment Provisions
- Stretcher Provisions
- Emergency Flotation Gear
- 2 x 10 man Reversible Liferafts and Survival Packs
- Crew Lifejackets with Emergency Sarbe Beacons
- 13x Passenger Lifejackets
- Two Fire Extinguishers
- First Aid Kit |
| Exterieur | | - Paint : White, Red, Green and Brown |
| Interieur | | - Standard Seats |
| Stand Inspektion | - Helicopter is unserviceable, due for D-Check and currently under Preservation/Storage.
Description / TSN-TSO / Time Remaining
- Main Rotor Blade / --- / Removed
- Main Rotor Blade / --- / Removed
- Main Rotor Hub Assy / --- / Removed
- Main Rotor Mast / 3.171,10 / 1.828,90
- Main Transmission / 1.610,70 / 4.389,30
- Scissor and Sleeve / 97,10 / 902,90
- Swashplate and Support / --- / Removed
- 42° Gearbox / --- / Removed
- 90° Gearbox / --- / Removed
- Tail Rotor Hub / 392,70 / 607,30
- Tail Rotor Blade / --- / Removed
- Tail Rotor Blade / --- / Removed
- Power Section 1 / --- / Removed
- Power Section 2 / 10.265,18 - 4.801,60 / 698,40
- Combining Gearbox / 3.051,50 / 948,50 |
| Bemerkungen/Sonstiges | | - If some of the components which have been removed are required, they can be delivered with the helicopter and price adjusted accordingly. |

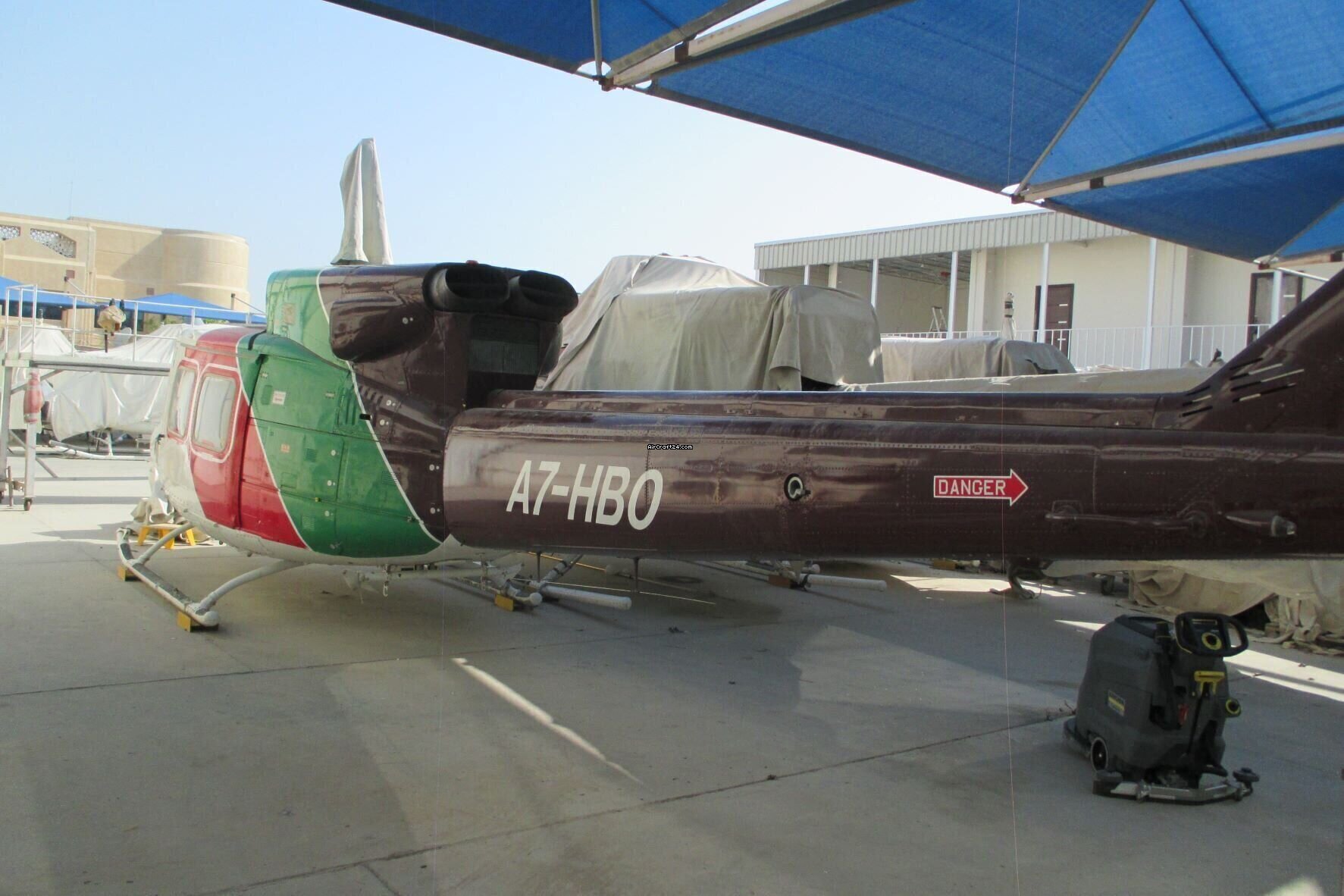

Fotos
