Bell 212 |
Preis auf Anfrage |
Übersicht
Übersicht | Typ: | Helikopter (Turbine) | Hersteller: | Bell | Modell: | 212 | Baujahr: | 1978 | RegistrierungsNr.: | A7-HBU | Serien-Nr.: | 30902 | Standort: | Qatar, Doha | Gesamtzeit (TTAF): | 22501 h | Preis: | Preis auf Anfrage | Alle Details |
Anbieter |
Feilhauer Aircraft Sales P.O. Box 87 CH-1217 Meyrin 1 Schweiz
Tel.: +41 22 782 98 00 Fax: +41 22 782 98 11 |
Kontakt zum Anbieter |
|
|
|
Details
Übersicht | Typ: | Helikopter (Turbine) | Hersteller: | Bell | Modell: | 212 | Baujahr: | 1978 | RegistrierungsNr.: | A7-HBU | Serien-Nr.: | 30902 | Standort: | Qatar, Doha | Gesamtzeit (TTAF): | 22501 h | Preis: | Preis auf Anfrage |
Motor(en) | Anzahl Motoren: | 2 | Hersteller/Modell: | Pratt & Whitney PT6T-3B |
Beschreibung/Details Motoren | Engine N° 1 : TSO : 766,30 Hours
Engine N° 2 : TSO : 1768,24 Hours |
Avionik | - Dual Panel Cockpit Instruments
- Two King KTR-905 VHF Radios
- Two King KDF-805 ADF
- King KNR-630 VOR/ILS
- King KDM-705 DME
- King MKR-675 Marker
- King KXP-755 Transponder with Mode C
- Sperry AA300 & AVAD Radio Altimeter
- RS-811A Weather Radar
- Garmin 165 Area Navigational Aid GPS
- Cockpit Voice Recorder
- NAT 150/450 FM Comm
- Flight Crew / Passenger Intercom System
- ELT 406 |
Ausstattung | - Dual Controls
- Rotor Brake
- Undersling Load Hook and Role Equipment Provisions
- Stretcher Provisions
- Emergency Flotation Gear
- 2 x 10 man Reversible Liferafts and Survival Packs
- Crew Lifejackets with Emergency Sarbe Beacons
- 13x Passenger Lifejackets
- Two Fire Extinguishers
- First Aid Kit |
Exterieur | - Paint : White, Red, Green and Brown |
Interieur | - Standard Seats |
Stand Inspektion | - Helicopter is unserviceable, due for D-Check and currently under Preservation.
Description / TSN-TSO / Time Remaining
- Main Rotor Blade / --- / Removed as Serviceable
- Main Rotor Blade / --- / Removed as Serviceable
- Main Rotor Hub Assy / 276,80 / 2.023,20
- Main Rotor Mast / 987,70 / 4.012.30
- Main Transmission / 1.066,63 / 1.933,37
- Scissor and Sleeve / --- / Removed
- Swashplate and Support / --- / Removed
- 42° Gearbox / --- / Removed
- 90° Gearbox / 561,00 / 2.439,00
- Tail Rotor Hub / 532,20 / 567,80
- Tail Rotor Blade / --- / Removed
- Tail Rotor Blade / --- / Removed
- Power Section 1 / 10.710,24 - 766,30 / 4.733,70
- Power Section 2 / 10.741,00 - 1.768,24 / 3.731,60
- Combining Gearbox / 3.275,40 / 2.724,60 |
Bemerkungen/Sonstiges | - If the components which have been removed are required, they can be installed and price adjusted accordingly. |

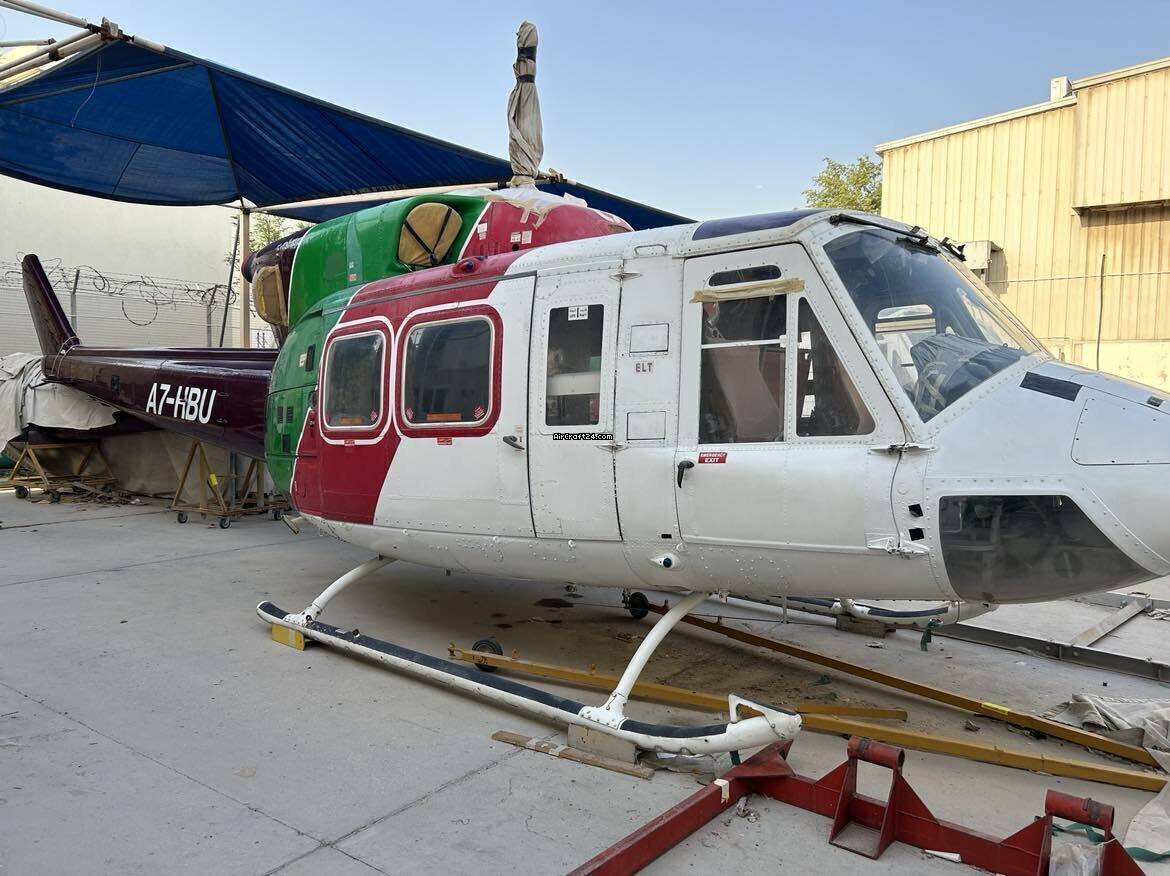

Fotos
